JFR single-phase voltage regulator

Datasheet · EN — Official Siemens Energy datasheet (2021) for the JFR single-phase distribution voltage regulator: construction and serviceability features (Type 316 stainless steel hardware, sealed tank with pressure relief device, external MOV bypass arrester, oil sight gauge, polarized disconnect switch, cover-mounted terminal block, Siemens Energy control panel) plus the complete technical-information table of 31 catalog numbers across four voltage classes — 2,500 V to 19,920 V/34,500 V Grd. Y — with line amps and BIL for each unit.

Product type
JFR single-phase distribution voltage regulator
Voltage classes (rated)
2,500V/4,330 V Grd. Y · 5,000 V/7,620 V/13,200 V Grd. Y · 14,400 V/24,940 V Grd. Y · 19,920 V/34,500 V Grd. Y
BIL
60 kV / 95 kV / 150 kV (by voltage class)
Line amps
50 A up to 1,665 A across the catalog range
Cooling designation
Catalog number starting with 10 = self-cooled; 11 = forced-air cooled
Overload capability
With the 65° C insulation system, 55° C rise regulators can be loaded up to 12 percent above nameplate rating
Bushings
High-creep bushings with a minimum creep distance of 17 inches
External hardware
Type 316 stainless steel standard on all JFR models

About this datasheet

This datasheet, published by Siemens Energy in 2021, presents the JFR single-phase voltage regulator for distribution circuits. Page 1 lists the construction and serviceability features; page 2 gives the technical-information table of all 31 catalog numbers with application, line amps and BIL.

The document shows photographs of the regulator tank and the Siemens Energy control panel. No dimensions, weights or regulation-range percentages are stated in this datasheet — those values would come from other JFR documentation.

Construction and protection features

Electrostatically-applied polyester paint gives greater resistance to corrosion in harsh environments. Type 316 stainless steel external hardware is standard on all JFR models to eliminate rust and galling.

The sealed tank has a pressure relief device to vent gases produced during tap changes. An external metal oxide varistor (MOV) bypass arrester gives superior protection to the regulator series winding from surge and system transients.

With the 65° C insulation system, Siemens Energy 55° C rise regulators can be loaded up to 12 percent above nameplate rating. The platform base is equipped with provisions to securely attach the regulator to a sub-base assembly.

Serviceability and control features

An oil sight gauge allows oil levels and oil conditions to be checked without de-energizing the regulator, and an oil drain valve includes an oil sampling valve for easy access. The motor capacitor is installed in the control cabinet, allowing replacement without bypassing and taking the regulator out of service.

A polarized disconnect switch (PDS) facilitates easy control installation or change out without taking the regulator out of service. A cover-mounted terminal block provides easier access to wiring by eliminating the need to go under oil to change tap connections.

Output voltage can be monitored and automatically controlled through the use of the Siemens Energy control panel. High-creep bushings provide a minimum creep distance of 17 inches.

Technical information — catalog numbers, line amps and BIL

The full technical-information table as printed on page 2 of the datasheet. The catalog number includes the kVA rating. Units with catalog numbers starting with 10 are self-cooled; those starting with 11 are forced-air cooled. Catalog numbers marked * have an 875 amp tap changer available.

Fidelity note: line-amp values are transcribed exactly as printed — the source uses thousands separators inconsistently (e.g. '1,000' and '1,332' in the 2.5 kV class but '1093', '1167' and '1457' in the 7.6 kV class).

Catalog number (includes kVA)ApplicationLine ampsBIL (kV)
10-02.5-100.0Rated: 2,500V/4,330 V Grd. Y — For: 2,500-2,400 volt circuits40060
10-02.5-167.0Rated: 2,500V/4,330 V Grd. Y — For: 2,500-2,400 volt circuits66860
10-02.5-250.0Rated: 2,500V/4,330 V Grd. Y — For: 2,500-2,400 volt circuits1,00060
10-02.5-333.0Rated: 2,500V/4,330 V Grd. Y — For: 2,500-2,400 volt circuits1,33260
11-02.5-416.3Rated: 2,500V/4,330 V Grd. Y — For: 2,500-2,400 volt circuits1,66560
10-07.6-076.2Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits10095
10-07.6-114.3Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits15095
10-07.6-167.0Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits21995
10-07.6-250.0Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits32895
10-07.6-333.0Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits43895
10-07.6-416.3Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits54895
10-07.6-500.0Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits65695
10-07.6-509.0*Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits66895
10-07.6-667.0Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits87595
10-07.6-833.0Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits109395
11-07.6-889.0Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits116795
11-07.6-1110.0Rated: 5,000 V/7,620 V/13,200 V Grd. Y — For: 5,000-8,000-7,620-7,200-6,930 volt circuits145795
10-14.4-072.0Rated: 14,400 V/24,940 V Grd. Y — For: 14,400 or 7,200 volt circuits50150
10-14.4-144.0Rated: 14,400 V/24,940 V Grd. Y — For: 14,400 or 7,200 volt circuits100150
10-14.4-288.0Rated: 14,400 V/24,940 V Grd. Y — For: 14,400 or 7,200 volt circuits200150
10-14.4-333.0Rated: 14,400 V/24,940 V Grd. Y — For: 14,400 or 7,200 volt circuits231150
10-14.4-432.0Rated: 14,400 V/24,940 V Grd. Y — For: 14,400 or 7,200 volt circuits300150
10-14.4-576.0Rated: 14,400 V/24,940 V Grd. Y — For: 14,400 or 7,200 volt circuits400150
11-14.4-720.0Rated: 14,400 V/24,940 V Grd. Y — For: 14,400 or 7,200 volt circuits500150
10-14.4-833.0*Rated: 14,400 V/24,940 V Grd. Y — For: 14,400 or 7,200 volt circuits578150
10-19.9-100.0Rated: 19,920 V/34,500 V Grd. Y — For: 19,900 volt circuits50150
10-19.9-200.0Rated: 19,920 V/34,500 V Grd. Y — For: 19,900 volt circuits100150
10-19.9-333.0Rated: 19,920 V/34,500 V Grd. Y — For: 19,900 volt circuits167150
10-19.9-400.0Rated: 19,920 V/34,500 V Grd. Y — For: 19,900 volt circuits200150
10-19.9-667.0Rated: 19,920 V/34,500 V Grd. Y — For: 19,900 volt circuits335150
11-19.9-833.0Rated: 19,920 V/34,500 V Grd. Y — For: 19,900 volt circuits418150

Notes to the technical information table

*875 amp tap changer available (catalog numbers 10-07.6-509.0 and 10-14.4-833.0).

Units with catalog number starting with: 10 = self-cooled; 11 = forced-air cooled.

Figures & drawings

Click any figure to enlarge.

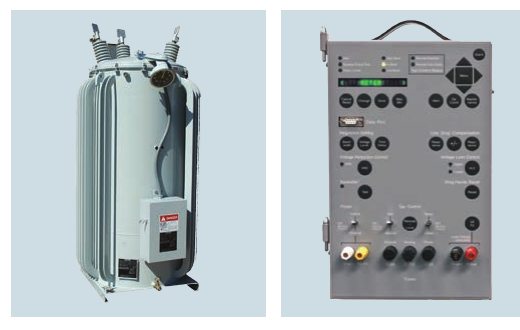

JFR single-phase voltage regulator tank (left) and the Siemens Energy control panel (right) — product photographs from page 1 of the datasheet.
