CAREPOLE pole-mounted dry-type (cast-resin) single-phase overhead distribution transformer, 10–100 kVA / ≤ 36 kV

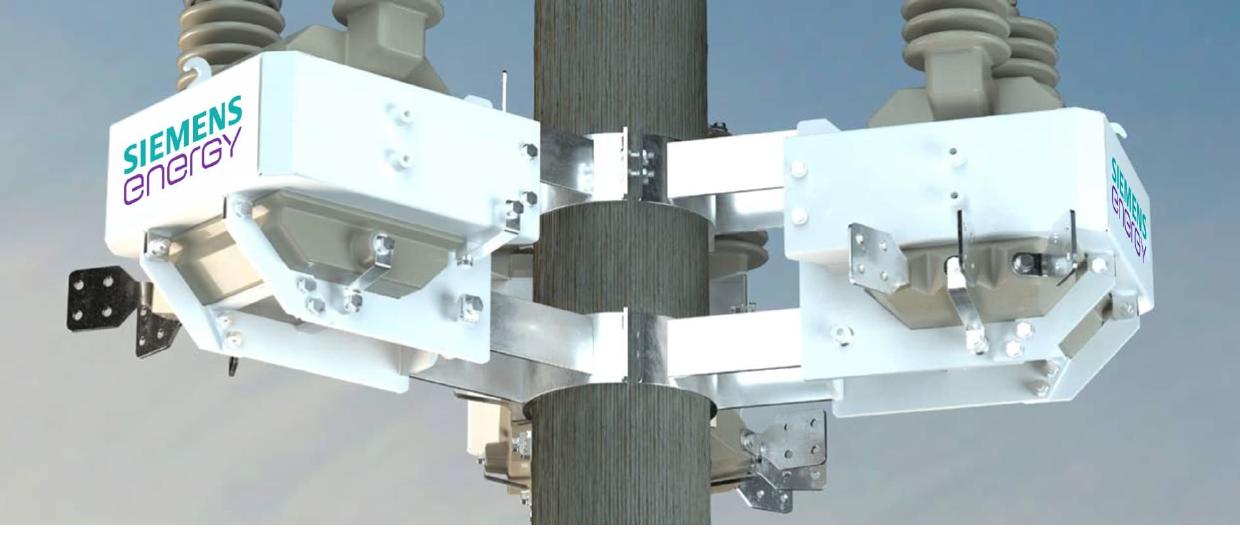

CAREPOLE

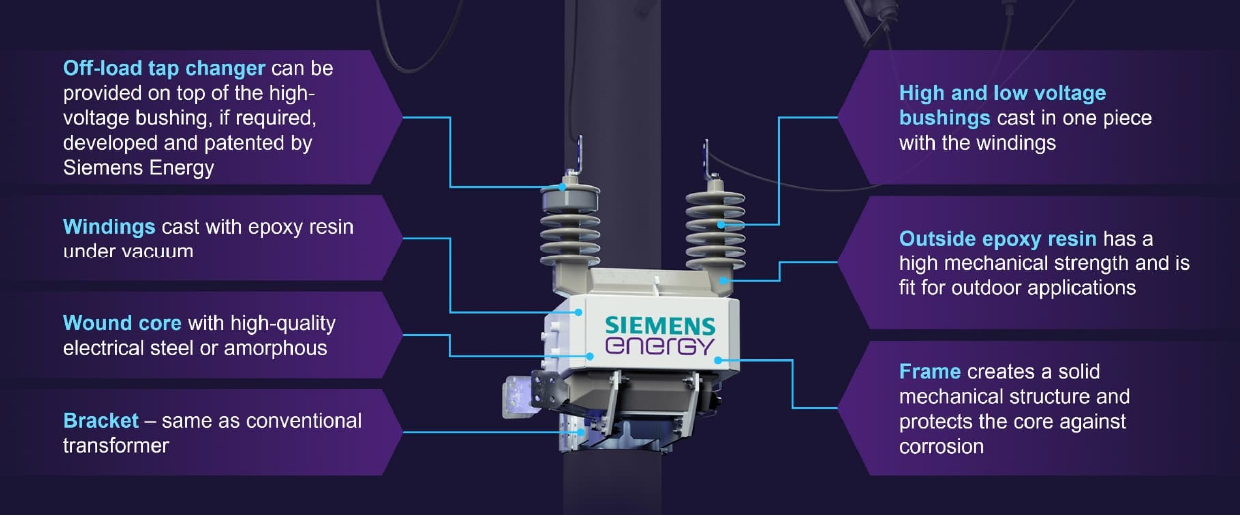

- Windings cast with cycloaliphatic epoxy resin under vacuum, separated from the core — solid insulation keeps moisture out of the windings and withstands the dielectric loads of the distribution network
- No flammable oil-based insulating fluids and no tank: self-extinguishing cast resin, no explosion risk, no risk to water sources or nature reserves from oil leaks
- Maintenance-free with an expected lifetime of 25+ years — servicing limited to checking vegetation conditions and wildlife management
- Direct replacement for liquid-filled overhead distribution transformers: identical brackets and pole-fixing mechanisms, mountable at any angle, immediate energizing after installation
- Higher temperature withstand than liquid-filled transformers thanks to the thermal class of the solid insulation — units can be overloaded for longer periods of peak demand
- Orderable as Sensformer: sensors and smart IoT gateway transmit operational data with end-to-end encryption for loading, temperature and life-consumption views
Overhead distribution grids (pole-mounted)Urban, rural and coastal outdoor installationsDrop-in replacement of liquid-filled overhead distribution transformersEnvironmentally sensitive areas near water sources and nature reserves
